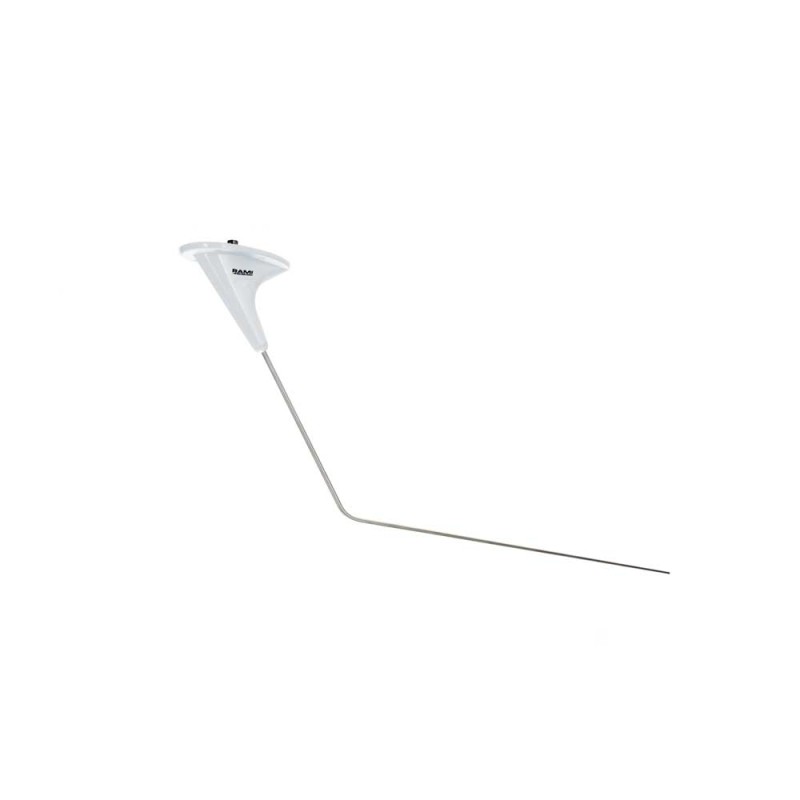

RAMI AV-17 Bent Whip VHF AM Air Band Comm Antenna

RAMI AV-17 Bent Whip VHF AM Air Band Comm Antenna
New
RAMI AV-17 Bent Whip VHF AM Air Band Comm Antenna
Based on 0 reviews. - Write a review
NZ$768.32
Ex Tax: NZ$668.10
  • Availability: In Stock
  • Part Number: AV-17
RAMI (R A Miller Industries) RAMI (R A Miller Industries)
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

The AV-17 is a general aviation antenna designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications.   This antenna is a direct replacement for the CI 122.

Electrical
Frequency 118-137 MHz
Impedance 50 Ohm
VSWR 3.0:1 (Maximum)
Polarization Vertical
Radiation Patern Omni Directional (Compromised by whip shape)
Connector BNC Female
Max RF Power 30 Watt
Radiating Element Type 1/4 Wave Bent Whip
Mechanical
Height 9.0 Inch
Mounting Patern 4 Hole
Max Speed 350 mph
Max Altitude 50,000 ft
Drag Force 0.66 lbf @ 250 mph
Certification
TSO C37d, C38d
