David Clark Ground Support Headsets
Call to confirm lead time
David Clark Ground Support Headsets
Call for Price
- Availability: Call to confirm lead time
- Part Number: H3000 Series
David Clark produces a large range of ground support headsets. They are generally considered the industry standard in ground support comms.
SPA carries some of the more popular models in stock. Contact us to discus you requirements.
Very High Noise (Maintenance) Headsets

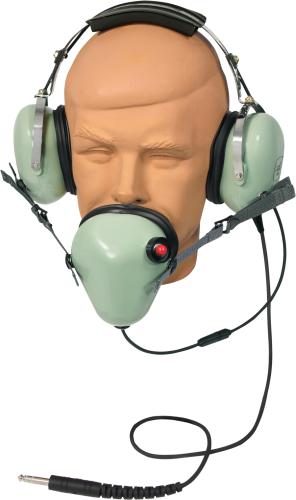

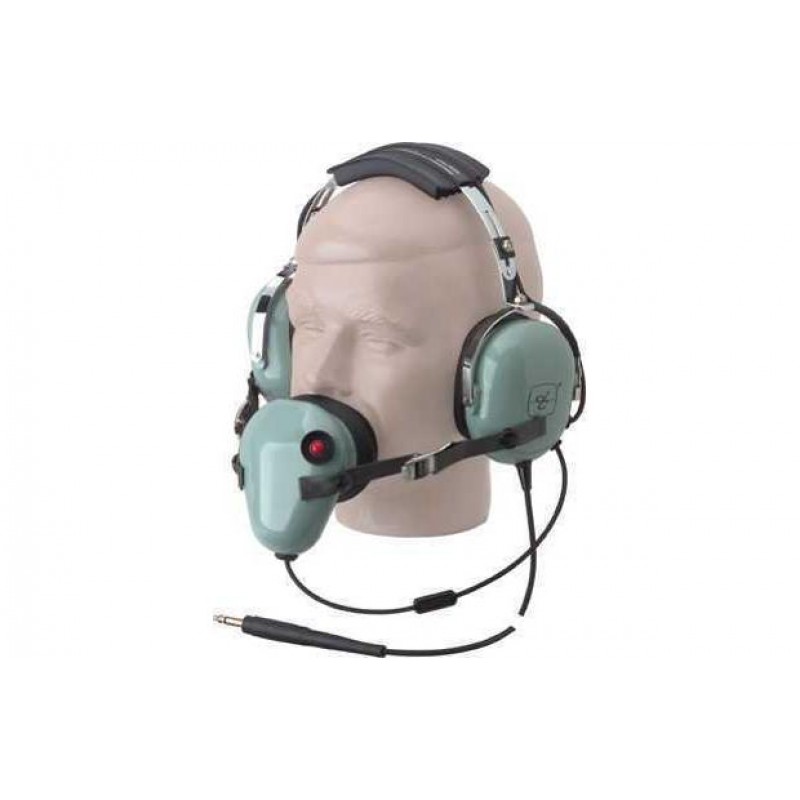

Model H3310
Muff-Mic (Shielded Mic) Style Headset for a Variety of Maintenance and Ramp Operations
Noise shielded microphone with momentary push-to-talk switch, can hang loosely or be secured over mouth with support straps
DC-1A noise-cancelling amplified dynamic microphone
Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
30-inch straight cord with 1/4" TRS plug mates with Series C31-XX extension cords
Corrosion-proof, chrome plated, headband/stirrup assembly
Certified Noise Reduction Rating (NRR): 26db

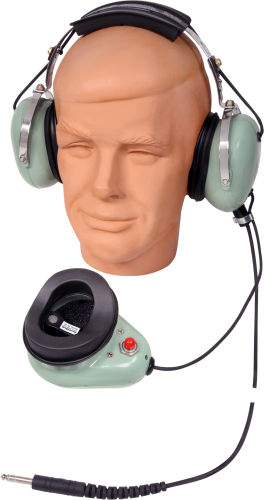

Model H3312
Muff-Mic Style Headset for a Variety of Maintenance and Ramp Operations
Noise shielded microphone with momentary push-to-talk switch, hangs freely for periodic use
DC-1A noise-cancelling amplified dynamic microphone
Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
25-foot straight cord with 1/4" TRS plug eliminates need for extension cords
Corrosion-proof, chrome plated, headband/stirrup assembly
Certified Noise Reduction Rating (NRR): 26db

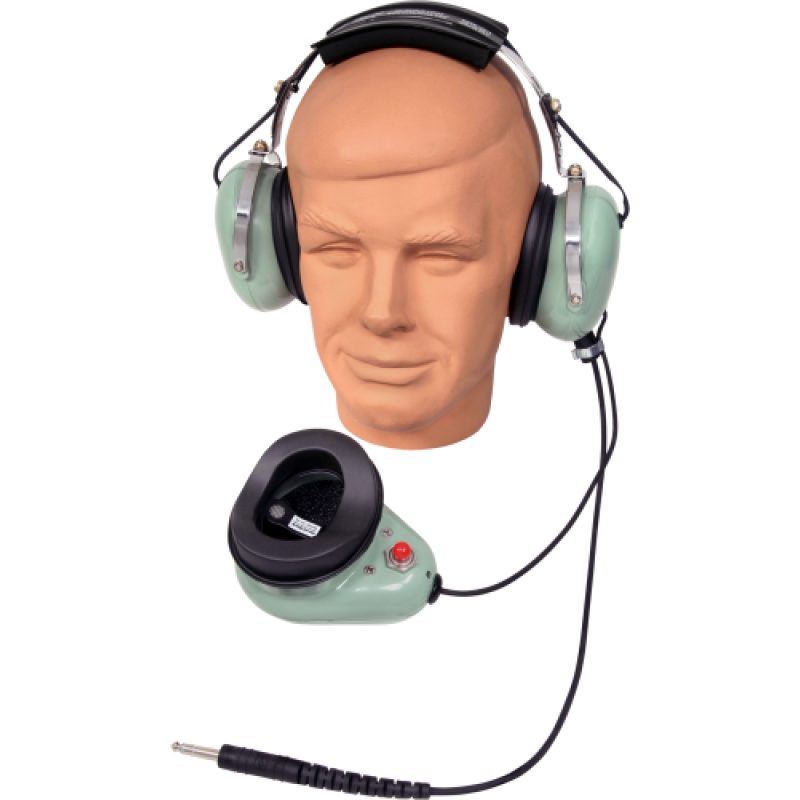

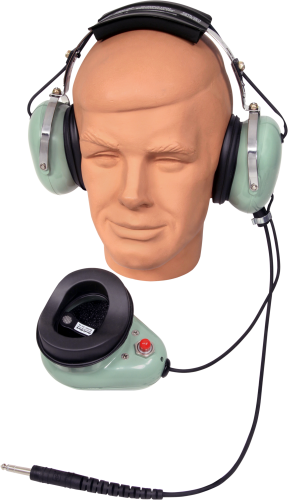

Model H3313
Muff-Mic Style Headset for a Variety of Maintenance and Ramp Operations
Noise shielded microphone with momentary push-to-talk switch, hangs freely for periodic use
DC-1A noise-cancelling amplified dynamic microphone
Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
30-inch straight cord with 1/4" TRS plug mates with Series C31-XX extension cords
Corrosion-proof, chrome plated, headband/stirrup assembly
Certified Noise Reduction Rating (NRR): 26db
Comparison
| Feature / Model | H3310 | H3312 | H3313 |
| Cable/Cord | 30 Inch (Requires C31 Extension Cord) | 25 foot (Plugs straight into aircraft) | 30 Inch (Requires C31 Extension Cord) |
| Microphone | Straps hold mic housing in place so engineer can use both hands while working | No Straps for mic housing, needs to be held while in use | No Straps for mic housing, needs to be held while in use |
General Ground Support

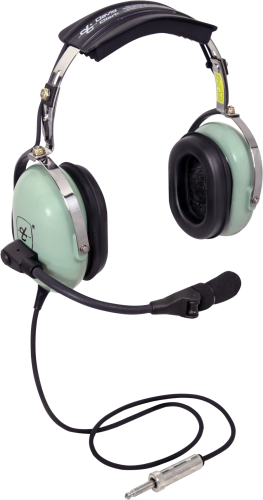

Model H3530
Designed for Tug Drivers in Pushback Operations
Flex boom allows for perfect microphone placement
DC-1A noise-cancelling amplified dynamic microphone
Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
30-inch straight cord with locking connector mates with C35-XX Series Belt Station (below)
Corrosion-proof, chrome plated, headband/stirrup Assembly
Certified Noise Reduction Rating (NRR): 24db

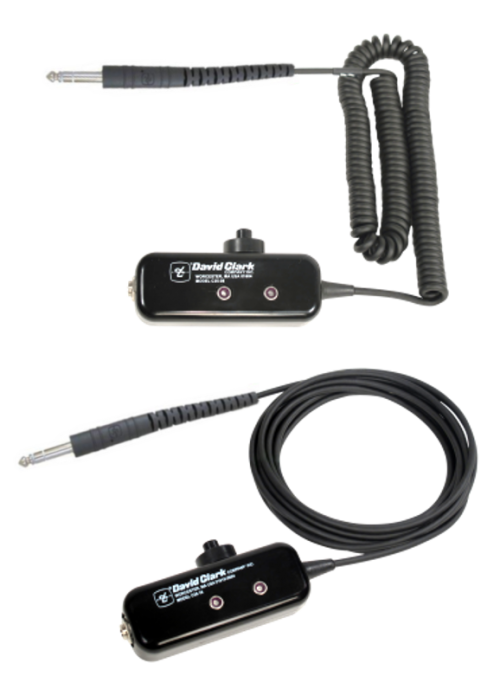

C35-XX
Interfaces the H3530 Headset to Aircraft
Momentary push-to-talk switch prevents background noise from interfering with communications
Available with either straight or coil cords in lengths from 8 to 30 feet
Threaded 1/4" jack on enclosure, with 1/4" TRS plug on end of cord assembly
C35-XX Series includes: C35-16 and C35-30 straight cord; C35-08 and C35-26 extended coil cord (number after dash indicates cord length in feet)

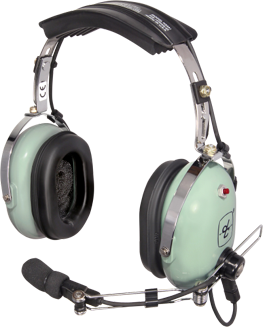

Model H3331
Typically Used for Pushback and Ramp Communications
DC-1A noise-cancelling amplified dynamic microphone
Microphone PTT switch on ear dome
Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
Hinged wire boom for easy microphone placement on right or left side
15-foot straight cord with 1/4" TRS plug mates with C31-XX extension cords
Corrosion-proof, chrome plated, headband/stirrup assembly
Certified Noise Reduction Rating (NRR): 24db

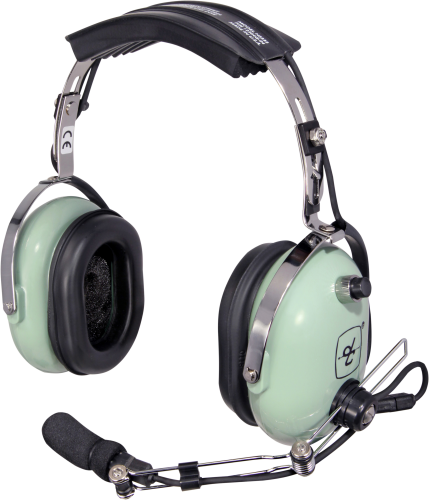

Model H3335
Typically Used for Pushback and Ramp Communications
DC-1A noise-cancelling amplified dynamic microphone
Microphone on/off switch on ear dome allows hands-free communication
Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
Hinged wire boom for easy microphone placement on right or left side
26-foot coil cord with 1/4" TRS plug mates with C31-XX extension cords
Corrosion-proof, chrome plated, headband/stirrup assembly
Certified Noise Reduction Rating (NRR): 24db

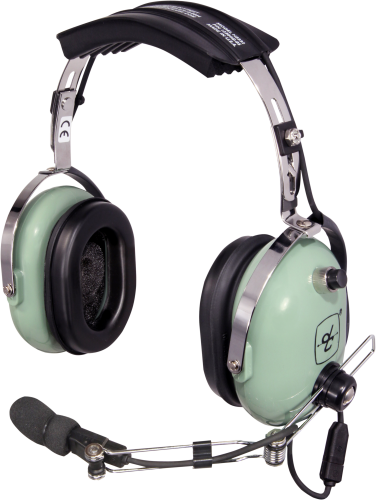

Model H3332
Typically Used by Bucket Operator during Wired Deicing Applications
DC-1A noise-cancelling amplified dynamic microphone
Microphone on/off switch allows hands-free communication
Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
Hinged wire boom for easy microphone placement
5-foot extended coil cord with 1/4" TRS plug
Corrosion-proof, chrome plated, headband/stirrup assembly
Certified Noise Reduction Rating (NRR): 24db

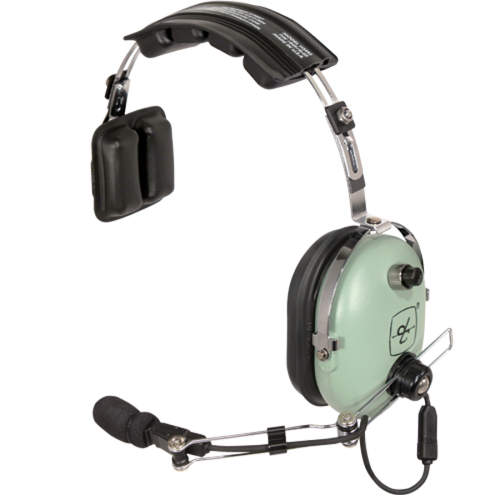

Model H3392
Typically Used Driver in Cab during Wired Deicing Applications
DC-1A noise-cancelling amplified dynamic microphone
Soft foam, 4-chamber head pad, temple pad and foam-filled ear seals for exceptional durability and comfort
Hinged wire boom for easy microphone placement
5-foot extended coil cord with 1/4" TRS plug
Corrosion-proof, chrome plated, headband/stirrup assembly
Single-ear design permits hearing of ambient sound
Comparison
| Feature / Model | H3530 | H3331 | H3335 | H3332 | H3392 |
| Cable/Cord | 30 Inch (Requires C31 Extension Cord) | 15 foot straight cord. (Can use C31 Extension Cord as well) | 25 foot coiled cord. (Can use C31 Extension Cord as well) | 5 foot coiled cord (plugs directly into GSE equipment) | 5 foot coiled cord (plugs directly into GSE equipment) |
| Microphone | Always On (Requires C35 Belt Station (PTT) | Momentary Press To Talk on Earcup. Mic on while button pressed. | Toggle Mic Switch on earcup. Stays on until switched off | Toggle Mic Switch on earcup. Stays on until switched off | Toggle Mic Switch on earcup. Stays on until switched off |
Extension and Jumper Cables
All Feature 1/4" TRS plugs on each end
40058G-01 Coiled Jumper Cord - 15 ft. (extended)
Male-to-Male coil cord assembly
Connects aircraft interphone service panel with 12B jack on push-back tow vehicle

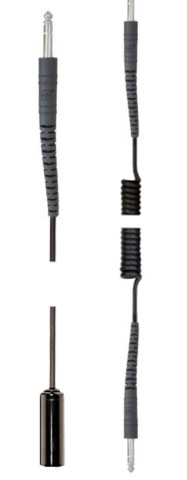

C31-XX Straight Cord - Number After Dash in Model Number Indicates Length in Feet.
Models available from 12 to 100 feet: C31-12, C31-25, C31-50, C31-100
Connects aircraft interphone service panel. Designed for use with Series 3000 headsets
C31-26 Coil Cord, 26 ft. (extended).
Connects aircraft interphone service panel. Designed for use with Series 3000 headsets
