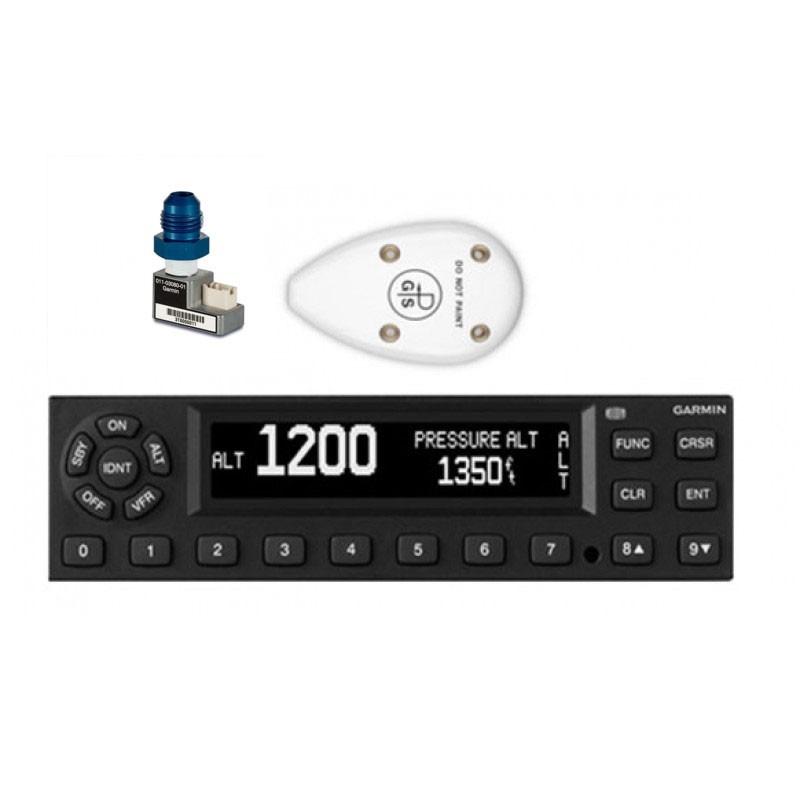

Garmin GTX335 ADS-B OUT Transponder

Ideal Transponder Solution for ADS-B “Out”

• 1090 MHz ADS-B “Out” enables aircraft to operate at any altitude, in airspace around the globe.  This is the frequency required for New Zealand Airspace.
• Combines Mode S Extended Squitter (ES) transponder and optional WAAS/GPS position source³ in a single unit.
• Easy replacement for your existing transponder, with common 1.65-inch tall form factor.

Your WAAS, Your Way

The extra-precise GPS position reference needed to meet the traffic monitoring requirements of ADS-B can be provided either by the WAAS/SBAS-compliant navigation system that you may already have in your panel — or by an optional built-in GPS position source available with your GTX 345 transponder³. However your aircraft is currently equipped, the Garmin GTX 345 series offers a simple, minimally intrusive ADS-B solution to meet your needs. For even more flexibility, optional remote mount GTX versions are available for compatibility with the GTN™ 750/650 series of GPS/Comm/Nav systems, as well as select Garmin G1000® integrated flight deck systems — all of which provide built-in remote transponder code selection and control.

Altitude Encoding Made Simple

You can pair the GTX series with an optional Garmin altitude encoder to satisfy data transmission requirements for IFR. As opposed to other transponders with altitude encoding built in, the Garmin altitude encoder mounts separately on the install rack. So, should the transponder ever require removal, there’s no need for the static line to be disconnected. Which, in turn, eliminates the need for a follow-on leak check — and thus helps minimize ongoing service costs.  The GTX345 is also compatible with most existing altitude encoders in case you preffer to bring your own.

Display Own Ship Altitude

Easily verify the operation and accuracy of your altitude encoder.  Remember to set your altimeter to 1013 hPa first.

Timer

On screen flight times and counters.  Flight time can be triggered from Air/Ground determination

Flight ID

Confirm and Set your flight ID easily on the screen.



GTX3X5 Part Numbers v Features.

*Includes GAE12 Altitude Encoder and GA35 GPS Antenna

Note: Part numbers are subject to change.
