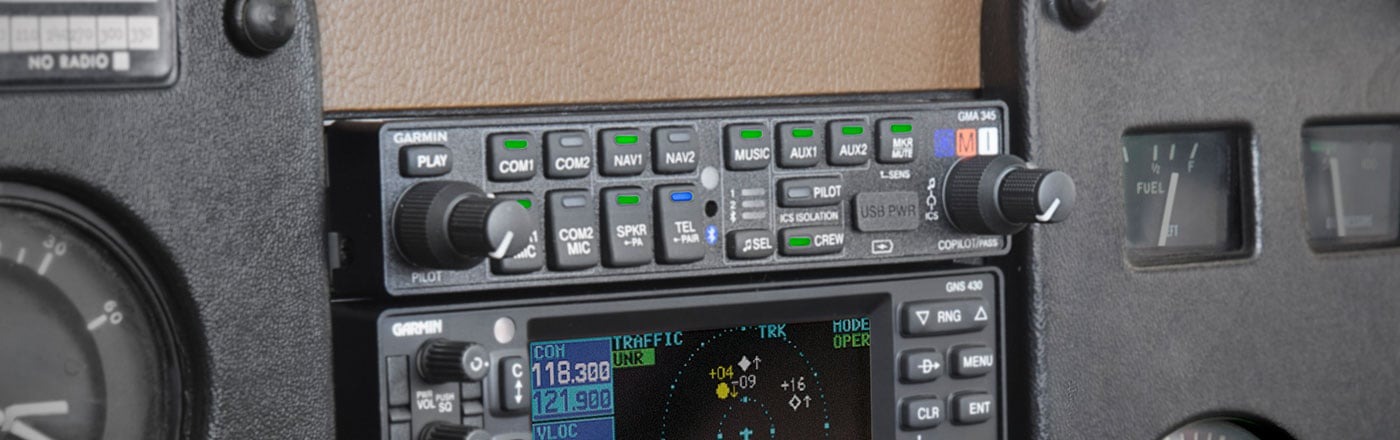

Garmin GMA342 / GMA345 Audio Panel

Innovative Features at an Affordable Price

The GMA 345/342 combine patented features alongside innovative sound quality to provide pilots with a costeffective audio panel, rich with an exclusive feature set.

• Home theater-like music effects add to the rich audio characteristics provided by the GMA 345/342, allowing pilots to select bass boost levels as well as equalizer effects, that include rock, classical and pop.
• Advanced auto squelch automatically adapts to the noise level within the cockpit and allows for natural conversation through headsets.
• 6-place stereo intercom and support for up to 3 stereo music inputs.
• Split-COMM mode also allows the pilot and co-pilot to broadcast independently on 2 separate frequencies.
• Built-in digital clearance recorder can record up to 60 seconds of selected COMM radio transmissions so pilots can easily play back difficult clearances or radio calls.
• Dedicated pilot and co-pilot music and intercom volume control knobs.
• Slide-in Replacement for the GMA 340 and PMA8000

Easy Connections, Better Communications

With its advanced sound processing and distribution features, these panels offer a superior inflight audio experience. It can support dual comm, dual nav, 3 aux receivers and 2 wired stereo music inputs — enhanced with bass boost levels, equalizer settings and exclusive 3D Audio technology that spatially separates the multiple communication sources entering your headset. Other highlights include industry-leading Auto Squelch, a digital clearance recorder and marker beacon receiver. 2 dedicated rear audio connections, allowing hardwired sources — such as SiriusXM® satellite radio or other high-fidelity music inputs — to be played and distributed through the audio system.

Listen in Virtual 3-D

For your radio communications, advanced 3-D digital sound processing, first introduced to general aviation by Garmin, enables GMA 342 to approximate how the human ear normally hears and registers multiple audio sources in space. With stereo headsets, incoming audio is spatially separated to reflect how different audio sources come from different directions around you. This makes it easier to distinguish one source from another — and helps you focus on the higher-priority calls coming into your headset. For example, COMM 1 will seem like it’s coming from the left while COMM 2 will seem to be coming from the right.

High-performance Auto Squelch

To further enhance the cockpit audio experience, advanced Auto Squelch technology the squelch automatically adapts to a quiet or noisy environment without clipping words or cutting out during conversation. A high-performance digital signal processor constantly monitors ambient noise level and automatically adjusts the mic squelch level required to keep intercom conversation as comfortable and natural as possible — whether you’re talking over engine noise in flight or quietly going through your preflight checklist on the ground. The unit’s Auto Squelch technology automatically adjusts for these variances, allowing you to speak at normal levels, no matter what the ambient sound conditions may be.



GMA342 Wired Entertainment

Convienient 3.5 mm front panel connector for musc and phone calls.





GMA345 Bluetooth

Bluetooth connection for calls and entertainment and a 2.1A front panel USB socket for charging.



GMA345 3rd Comm Option

Need a 3rd Comm selector for an HF, FM or Satphone, the GMA345 has that covered without sacrificing any other features.

Easy Installation/Upgrade

Upgrading the audio experience in your cockpit is easy as it’s fully rack-and-pin compatible in dual-Comm installations with the Garmin GMA 340 as well as select third-party audio panels. So, swap-out replacement takes minimal downtime. The audio panel’s built-in intercom and marker beacon help further reduce installation time for the system. And since it can operate on either 14 or 28 volts, there’s no need for any external voltage regulators or the wiring that goes with them. Fast, easy, affordable.

Get Instant Replay on ATC Calls and Clearances

An automatic digital voice recorder on GMA 342 continuously captures the last 60 seconds of incoming active comm audio for instant playback with a single button press. Any pilot who’s ever missed an ATC call, frequency assignment or clearance amendment will appreciate the value of this handy “say again” function.

Certification under AC43-14

Installation in most fixed wing aircraft in New Zealand can be certified under our AC43-14 as a minor design change
